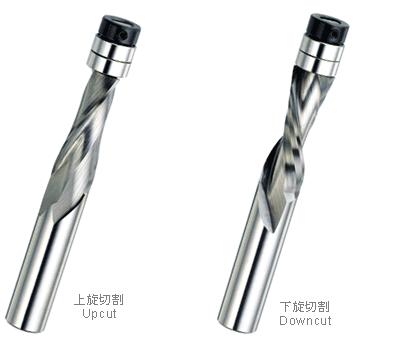

Solid Carbide Spiral Flush Trim 2
Flute with Double Ball Bearing Guides
Solid Carbide
Spiral Flush Trim 2 Flute with Double Ball Bearing Guides
Page 4/5
Feature :
‧ Designed to trim stacked
sheets of plastic. A double bearing guide ensures smooth cutting
action around a template. Best for trimming stacked sheet
plastic on laminate, melamine and template work.
‧Suggestion RPM: 12,000(min)~24,000(min)
‧The above data is just for reference. The correct data depends
on specific application.
‧Custom order is acceptable. The single bearing is also
available.
Suitable
Material :
‧ Suitable for hardwood and
plank material.
Suitable
Machine :
‧Suitable for traditional
router machine.
Working
Methods :
Model No.
Flutes
Cutting Length
Shank Size ( mm )
Overall Length ( mm )
4-1141E
2
1-1/4"
1/2"
3"
4-0212E
2
2"
1/2"
4"
4-3012
2
30
12
80
4-5012
2
50
12
100
4-2006
2
20
6
65
4-3414E
2
3/4"
1/4"
1-1/2"
